Sure-Fi Relay Hub Kit
SFK-DS013-RELAY-HUB
$2,870.20
Description
A wireless relay system built for job sites that need one central control point communicating with several remote locations at once. Instead of a single wired connection, the Relay Hub Kit uses one Hub unit paired with up to four separate Endpoint units, each acting as a wireless stand-in for the relay wiring that would otherwise run between them.
The Hub unit serves as the central point, sending and receiving signals to and from each of its four paired Endpoints. When a connected device at any endpoint triggers a relay (switching something on, for example), that signal travels wirelessly back to the Hub, and vice versa, so a single operator or control system can manage multiple remote points without pulling wire between each one. Each endpoint carries its own pair of relay input/output channels in both directions, giving every remote location independent switching capability.
What's Included

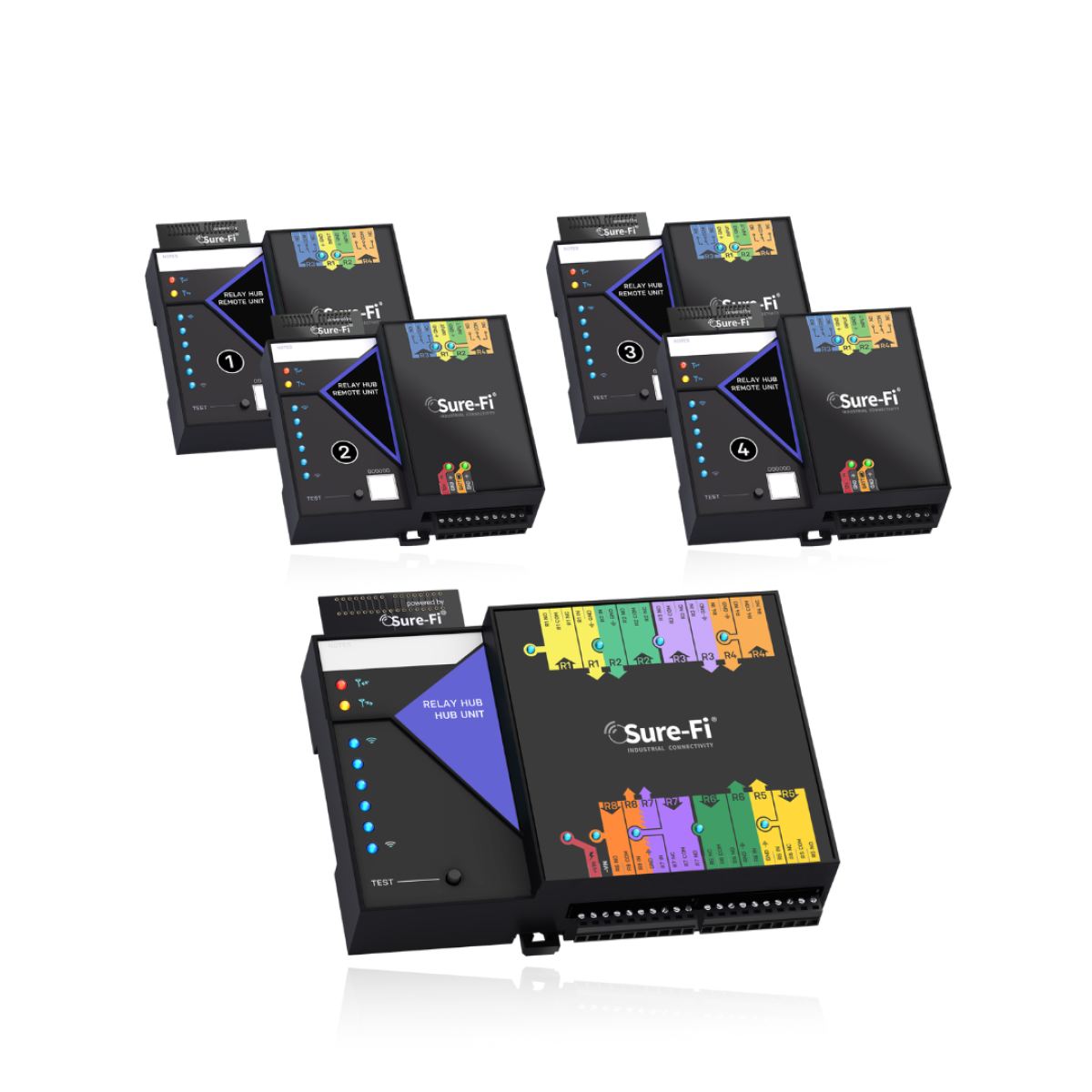

- Sure-Fi Relay HUB, 4 End-points (Relay B Units), IRM 30-12ST Power Supply.
- This one-to-four setup is suited to sites where several separate pieces of equipment, gates, pumps, or control points need to report back to or be triggered from a single hub, cutting down on both wiring costs and the number of individual point-to-point systems needed to cover a facility. One-to-four hub/endpoint architecture, 2 pairs of relay input/outputs each direction per endpoint, up to 1 mile through heavy obstruction and 50 miles line of sight.
